Acknowledgements

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.
• Libraries used: JavaFX, Jackson, JUnit5
• Logo icon adapted from AkashRajDahal.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Introduction

LinkyTime is a cross-platform desktop application designed for NUS Computer Science students to efficiently keep track of their online meetings and classes. The application is optimized for use via the Command Line Interface (CLI).

This Developer Guide (DG) serves to aid developers in explaining the design, architecture, and implementation of LinkyTime and its features. It also covers design considerations for specific features, and a guide on how to perform manual testing.

---

Design

Architecture

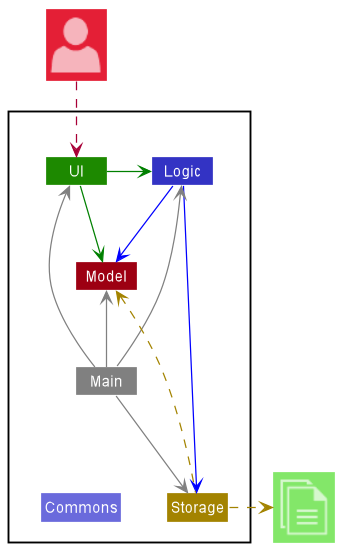

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes clean-up methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

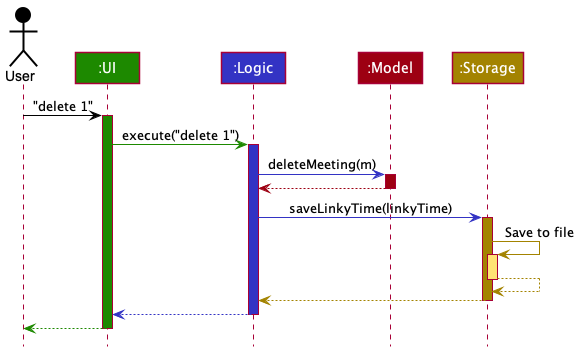

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

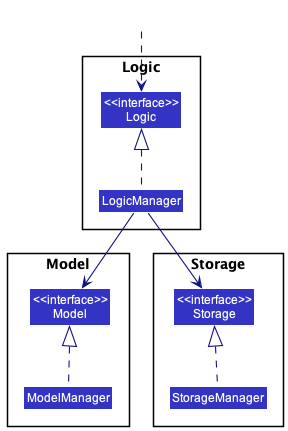

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

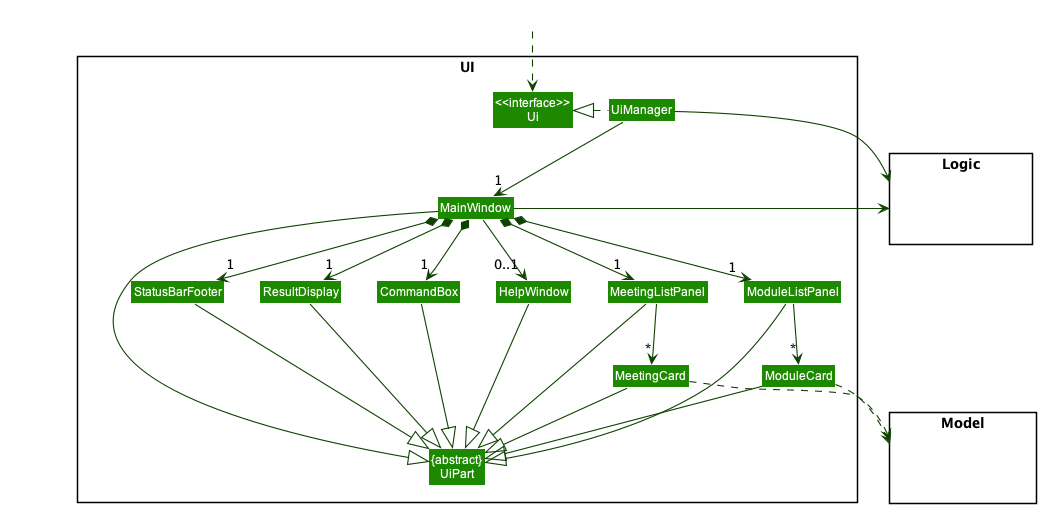

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, MeetingListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays the Meeting and Module objects residing in the Model.

Logic component

API : Logic.java

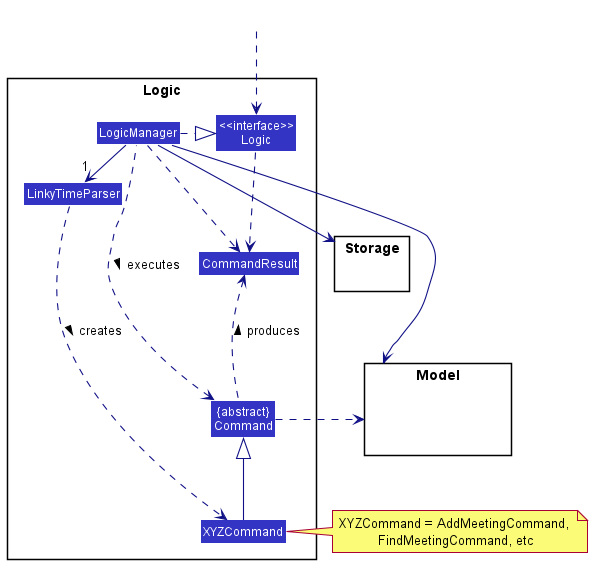

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the LinkyTimeParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddMeetingCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a meeting).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

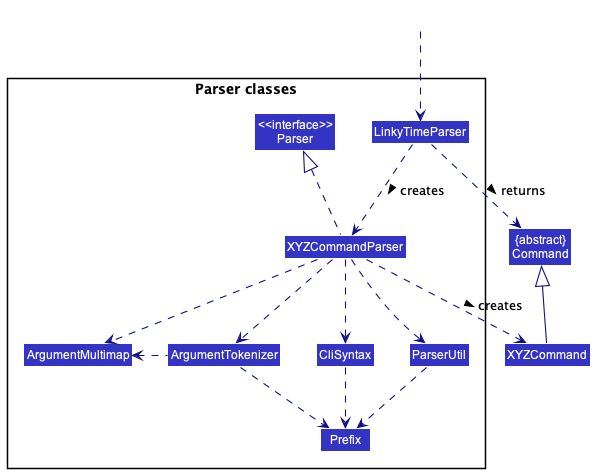

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the LinkyTimeParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddMeetingCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddMeetingCommand) which the LinkyTimeParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddMeetingCommandParser, DeleteModuleCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

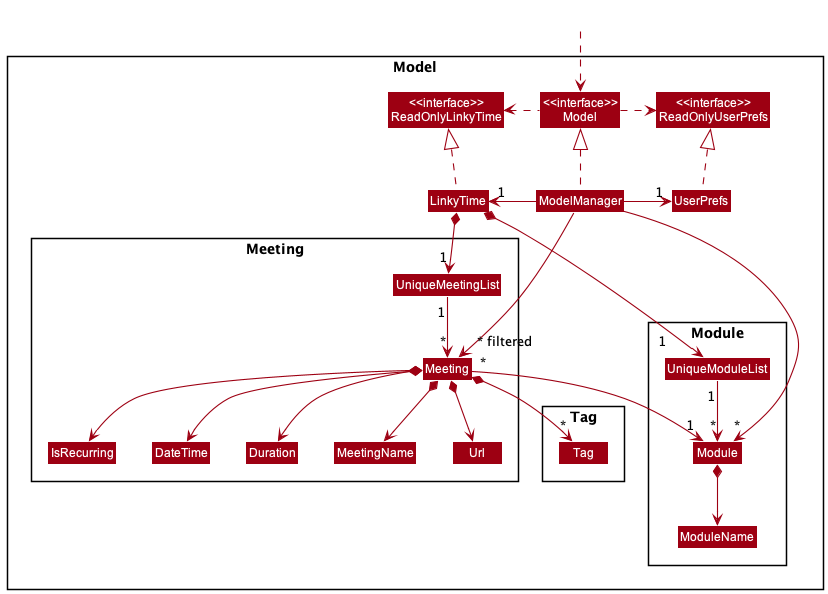

API : Model.java

The Model component,

• stores LinkyTime data i.e., all Meeting and Module objects (which are contained in a UniqueMeetingList and a UniqueModuleList object respectively).
• stores the currently ‘selected’ Meeting objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable list ObservableList<Meeting> and ObservableList<Module> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components, i.e. Storage, Model, UI (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

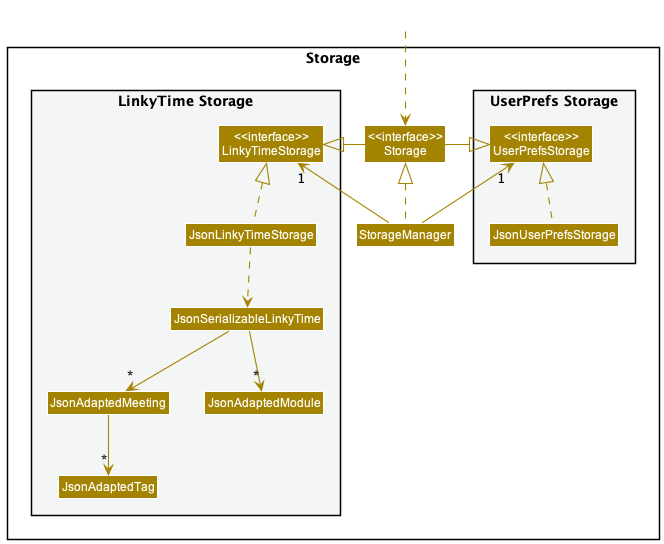

API : Storage.java

The Storage component,

• can save both LinkyTime data and user preference data in json format, and read them back into corresponding objects.
• inherits from both LinkyTimeStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Meetings

The Meetings component consists of the following set of features: List Meeting, Add Meeting, Edit Meeting, Delete Meeting, Find Meeting, and Opening Meeting URL.

The Meeting class

The Meeting class is made up of a MeetingName, MeetingUrl, MeetingDateTime, Module, MeetingDuration, IsRecurring, Set<Tag>, and a set of getter methods that corresponds to these fields.

Recurring Meetings

A meeting is recurring if it’s set to repeat on a weekly basis. Such meetings would never expire.

This section describes how the start and end date time of a recurring meeting is computed. The key implementation lies in getNextRecurrence, a helper method which computes the next recurrence relative to the current date and time. Since getStartDateTime and getEndDateTime utilises getNextRecurrence, they inherit the side effect of depending on the current date and time as well.

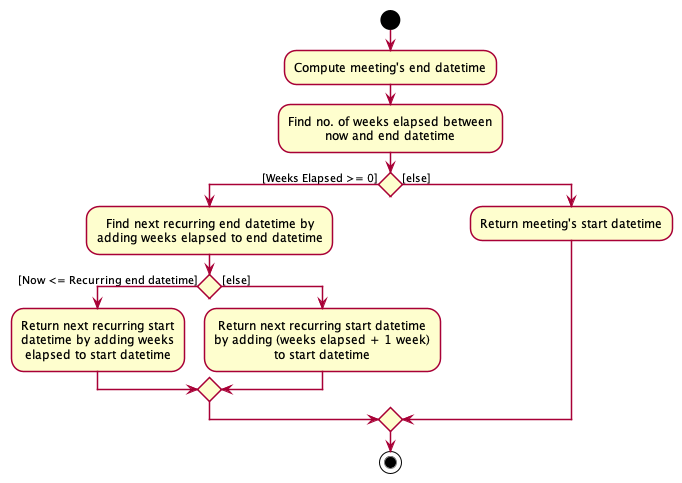

Below is an activity diagram describing the execution of getNextRecurrence.

Design considerations:

Aspect: How the notion of recurrence is implemented:

Alternative 1 (current choice): getStartDateTime and getEndDateTime will return their respective date times relative to the current date time.

• Pros: Easier to implement and integrate with other components such as GUI and storage.
• Cons: Unit-testing is less trivial since getStartDateTime and getEndDateTime would return different date times depending on when their test cases are executed.

Alternative 2: Generate the next set of recurring meetings to replace the existing ones. This is done at the start of the program and after each command execution.

• Cons: Implementation would sprawl across different components and more effort is required to ensure correctness.

Commands

This section explains the general implementation of all commands. The implementation of all commands in LinkyTime can be split into two general implementation flows: commands with a command-specific parser, and commands without.

Commands with a parser

This section explains the general implementation of all commands that require a command-specific parser to handle additional user input.

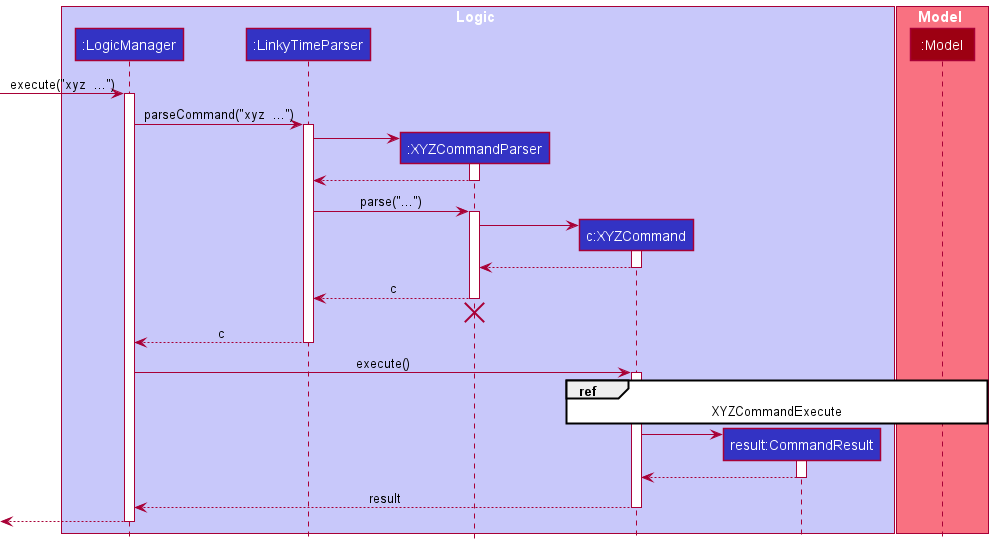

Below is the sequence diagram for the execution of these commands (denoted by XYZCommand) after user input is sent to LogicManager. The execution of each command has been omitted due to their differences and will be covered in the respective command sections.

Step 1: The user enters a command with additional required parameters (requires a command-specific parser) which is then passed to the LogicManager.

Step 2: The LogicManager then calls LinkyTimeParser::parseCommand for it to figure out what command this is.

Step 3: The LinkyTimeParser parses the user input and creates a command parser for that specific command. (denoted by XYZCommandParser)

Step 4: The command parser is then returned to the LinkyTimeParser which then calls XYZCommandParser::parse to parse the additional parameters.

Step 5: The XYZCommandParser then creates its respective command (denoted by XYZCommand) and returns it to LogicManager.

Step 6: The LogicManager then calls XYZCommand::execute where the interaction between the command and the model is handled.

Step 7: The XYZCommand then creates a successful CommandResult and returns it to the UI.

Commands without a parser

This section explains the general implementation of all commands that does not require a command-specific parser.

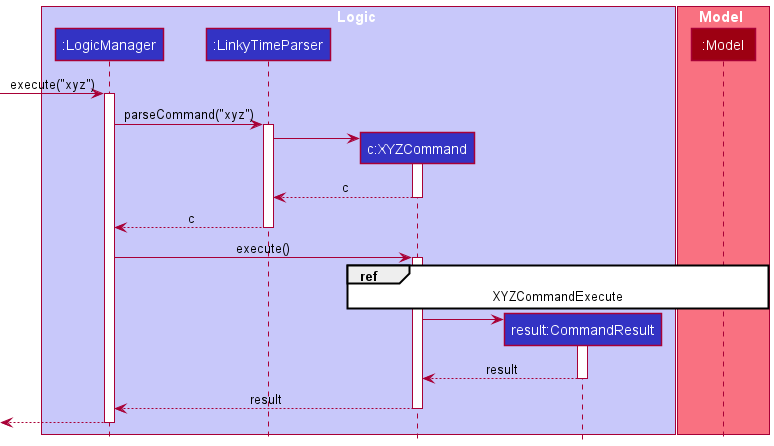

Below is the sequence diagram for the execution of these commands (denoted by XYZCommand) after user input is sent to LogicManager. The execution of each command has been omitted due to their differences and will be covered in the respective command sections.

Step 1: The user enters a command which is then passed to the LogicManager.

Step 2: The LogicManager then calls LinkyTimeParser::parseCommand for it to figure out what command this is.

Step 3: The LinkyTimeParser parses the user input and creates the respective command object (denoted by XYZCommand).

Step 4: The XYZCommand is then returned to the LogicManager.

Step 5: The LogicManager then calls XYZCommand::execute where the interaction between the command and the model is handled.

Step 6: The XYZCommand then creates a successful CommandResult and returns it to the UI.

List Meetings feature

This section explains the implementation of the List Meetings feature via the list command. The ListMeetingCommand updates the UI to display the details of all upcoming meetings in LinkyTime. This command does not require a parser.

Below is the sequence diagram reference frame for the execution of ListMeetingCommand.

Step 1: The LogicManager calls ListMeetingCommand::execute with the returned ListMeetingCommand.

Step 2: The ListMeetingCommand then calls Model::showCompletedMeetings to update the meeting list to show only upcoming meetings.

Step 3: The ListMeetingCommand then continues its execution as defined by this sequence diagram.

Design considerations:

Aspect: How ListMeetingCommand executes:

Alternative 1 (current choice): LinkyTimeParser returns a ListMeetingCommand without having a parser.

• Pros: Easier to implement and allows for more flexible user input.
• Cons: All user inputs that contains list as its first word will result in the execution of ListMeetingCommand, including those that don’t make sense. E.g. list abc

Alternative 2: LinkyTimeParser uses a ListMeetingCommandParser to enforce that the user input cannot have additional params.

• Pros: Provides clear definition of what the user input for a ListMeetingCommand should be.
• Cons: Harder to implement and more rigid in nature.

Archive Meetings feature

This section explains the implementation of the Archive Meetings feature via the archive command. The ArchiveMeetingCommand updates the UI to display the details of all completed meetings in LinkyTime. It is identical in implementation to the ListMeetingCommand except for the flip in the boolean that is passed into Model::showCompletedMeetings.

Add Meeting feature

This section explains the implementation of the Add Meeting feature via the add command. The AddMeetingCommand causes the specified meeting to be added to the application. This command requires several compulsory fields such as the meeting name, URL, date time, duration, module, and whether it is recurring. There is only one optional field which is the tags of the meeting. This command requires a parser.

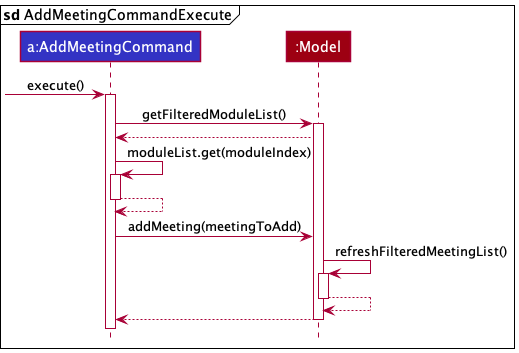

Below is the sequence diagram reference frame for the execution of AddMeetingCommand.

Step 1: The LogicManager invokes AddMeetingCommand::execute, which in turn calls Model::addMeeting to add the new meeting into the list.

Step 2: The Model will then call its own updateFilteredMeetingList method in order to update the model’s filter to display all meetings.

Step 3: The AddMeetingCommand then continues its execution as defined by this sequence diagram.

Design considerations:

Aspect: How AddMeetingCommand executes:

• Alternative 1 (current choice): Let the LogicManager pass the model to the command to execute.
  • Pros: Will not need to expose the model to the individual AddMeetingCommand.
• Alternative 2: Store the model in the AddMeetingCommand itself.
  • Pros: Easier to implement and trace.
  • Cons: The AddMeetingCommand might be able to abuse the model by calling the model’s other methods.

Delete Meeting feature

This section explains the implementation of the Delete Meeting feature via the delete command. The DeleteMeetingCommand removes the meeting with the given index from the meeting list. This command requires a single field: the index of the meeting to be deleted. This command requires a parser.

Below is the sequence diagram reference frame for the execution of an DeleteMeetingCommand.

Step 1: The LogicManager calls DeleteMeetingCommand::execute with the returned DeleteMeetingCommand.

Step 2: The DeleteMeetingCommand then calls Model::deleteMeeting to remove the target meeting from the list.

Step 3: The DeleteMeetingCommand then continues its execution as defined by this sequence diagram.

Design considerations:

Aspect: How DeleteMeetingCommand executes:

• Similar to the considerations of the AddMeetingCommand, this command is also concerned with the model storage and the modification of the underlying model object.

Find Meeting feature

This section explains the implementation of the Find Meeting feature via the find command. The FindMeetingCommand causes the GUI to only show meetings that matches the given keywords. This command requires a parser.

Below is the sequence diagram reference frame for the execution of the FindMeetingCommand.

Step 1: LogicManager calls FindMeetingCommand::execute.

Step 2: FindMeetingCommand calls Model::updateFilteredMeetingList with a predicate that describes the criteria for the meetings to be shown.

Step 3: The FindMeetingCommand then continues its execution as defined by this sequence diagram.

Design considerations:

Aspect: How FindMeetingCommand executes:

• Similar to the considerations of the AddMeetingCommand, this command is also concerned with the model storage and the modification of the underlying model object.

Aspect : Behaviour of find command when multiple keywords are provided:

• Alternative 1 (current choice): Command will return meetings which match all the given keywords.
  • Pros: Command can be used to narrow down a search to a small set of desired meetings.
  • Cons: Command may be too restrictive, requiring users to ensure that all keywords provided match the desired meetings.
• Alternative 2: Command will return meetings which match at least one of the given keywords.
  • Pros: Command can be used to find a diverse set of meetings that users may be interested in.
  • Cons: Command cannot be used to narrow down the search; adding more keywords may increase the number of meetings returned.

Open Meeting Feature

This section explains the implementation of the Open Meeting feature via the open command. The OpenMeetingCommand causes the application to open the given link in the desktop default browser. This is a command that requires a parser.

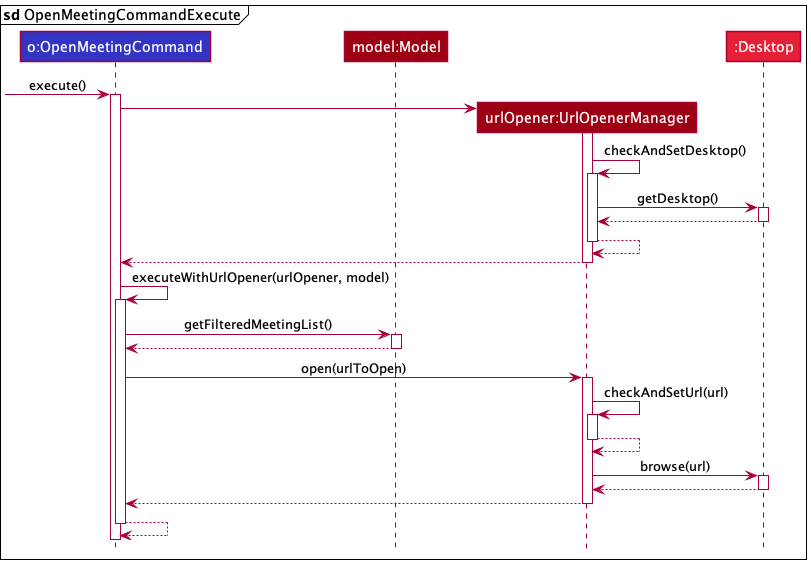

Below is the sequence diagram reference frame for the execution of OpenMeetingCommand.

Step 1: LogicManager calls OpenMeetingCommand::execute.

Step 2: OpenMeetingCommand creates a new UrlOpenerManager and calls OpenMeetingCommand::executeWithUrlOpener with it.

Step 3: OpenMeetingCommand gets the Url from the Model and calls UrlOpenerManager::open with it.

Step 4: The OpenMeetingCommand then continues its execution as defined by this sequence diagram.

Design considerations:

Aspect: Which component to handle desktop capabilities:

• Alternative 1 (current choice): Create a UrlOpener interface and a UrlOpenerManager to handle communication with the desktop.
  • Pros: Ease of testing as the behaviour of the desktop can be mocked using stubs.
  • Cons: Additional complexity and more areas for bugs.
• Alternative 2: Handle all communication with the desktop within OpenCommand.
  • Pros: Simpler implementation with less components to maintain.
  • Cons: Much harder to decouple the command logic from the behaviour of the desktop, which may differ according to the environment in which the tests are run. For example, when running tests meant for desktops on GitHub actions (a headless environment without desktop/browser capabilities), the tests for this command will fail.

Modules

The Modules component consists of the following set of features: Add Module, Edit Module, Delete Module.

All module-related commands are prefixed with an m to distinguish it from meeting-related commands.

The Module class

The Module class consists of a single field, and input validation happens directly inside the class via Module::isValidModule.

The Module objects are stored in a UniqueModuleList which is held by LinkyTime.

Design considerations:

• Alternative 1 (current choice): Store the module code string directly in the Module object.
  • Pros: Easy to implement and understand.
  • Cons: Difficult to add additional fields in the future.
• Alternative 2: Abstract the field out as a separate class.
  • Pros:
    • More object-oriented approach.
    • Responsibility of field verification would be done by the field class instead of the Module class.
  • Cons:
    • Over-abstraction of the Module class for the current implementation which consists of only one field.
    • May not be intuitive to understand at first glance.

As we do not intend to contain any additional fields within the Module object, we opted for a simpler approach in its design.

Delete Module feature

This section explains the implementation of the Delete Module feature via the mdelete command.

The DeleteModuleCommand causes the specified module to be deleted from the application.

If there are meetings that are tagged under this module, the command execution is blocked and an error message is displayed to the user. This command can be forced, see below.

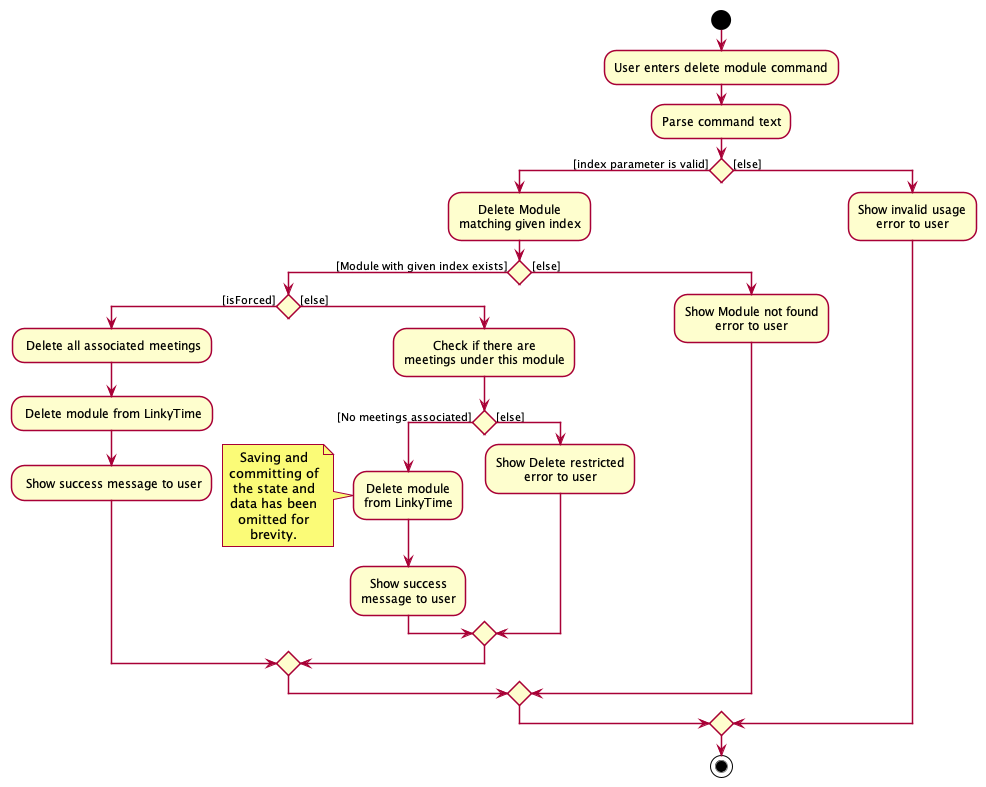

This process is summarized in the diagram below.

Force Delete Module feature

This feature is an extension to the existing Delete Module feature. By supplying an additional force-delete flag (f/) to the DeleteModuleCommand parameters, this would override the delete restriction and remove the selected modules and its associated meetings.

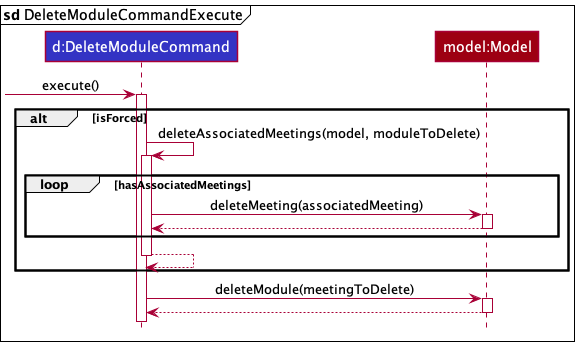

This command requires a parser. The sequence diagram for the DeleteModuleCommand is as shown below.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

Aiken Dueet is a Year 2 NUS Computer Science student. He is currently taking his modules online due to COVID-19. He:

• has a need to manage a large number of online meeting links and details
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: manage online meeting links much quicker than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …	I want to …	So that I can…
* * *	new user	see usage instructions	refer to instructions if I forget how to use the App
* * *	user	view all my upcoming meetings	see what meetings I have up next
* * *	user	view all my archived meetings	see my old meetings that I might have missed
* * *	user	add a new meeting	add my online lecture details
* * *	user	open a meeting URL	open my meeting URL in my browser quickly
* * *	user	edit an existing meeting	update my online lecture details
* * *	user	delete a meeting	remove old meetings that I don’t need anymore
* *	user with multiple meetings	search for meetings	find my online meetings easily
* * *	user	add a new module	add my classes I am taking this semester
* *	user	edit an existing module	update a module’s details
* * *	user	delete a module	remove old modules I am no longer taking
* *	user	delete a module and its associated meetings	quickly remove old modules and its meetings
* *	user starting a new semester	clear all data	remove old meetings and modules from the previous semester

---

Use cases

For all use cases below, the System is LinkyTime and the Actor is the user, unless specified otherwise. All use cases are prefixed with UC, followed by a three-digit use case number.

UC-001: List all upcoming meetings

MSS

1. User requests to list all upcoming meetings.

2. LinkyTime shows a list of all upcoming meetings.

   Use case ends.

Extensions

• 2a. The meeting list is empty.

  Use case ends.

UC-002: List all archived meetings

MSS

1. User requests to list all archived meetings.

2. LinkyTime shows a list of all archived meetings.

   Use case ends.

Extensions

• 2a. The meeting list is empty.

  Use case ends.

UC-003: Add a meeting

MSS

1. User requests to add a new meeting to the meeting list.

2. LinkyTime adds a new meeting with given parameters in the meeting list.

   Use case ends.

Extensions

• 1a. The user does not include the required parameters with the command.

  • 1a1. LinkyTime shows an error message stating which parameters are required.

    Use case ends.

• 1b. The user does not follow the format of the command.

  • 1b1. LinkyTime shows an error message stating the correct format of the command.

    Use case ends.

• 1c. The new meeting is a duplicate of an existing meeting in the meeting list.

  • 1c1. LinkyTime shows an error message stating that this meeting already exists.

    Use case ends.

UC-004: Open a meeting

MSS

1. User requests to list meetings.
2. LinkyTime shows the list of meetings.
3. User requests to open a specific meeting’s URL based on the index from the meeting list displayed in step 2.

4. LinkyTime opens the default browser with the given URL.

   Use case ends.

Extensions

• 2a. The meeting list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. LinkyTime shows an error message stating that the given index is invalid.

    Use case resumes at step 2.

• 3b. The application does not have permissions to open the browser.

  • 3b1. The application displays an error message.

    Use case ends.

UC-005: Edit a meeting

MSS

1. User requests to list meetings.
2. LinkyTime shows the list of meetings.
3. User requests to edit a specific meeting based on the index from the meeting list displayed in step 2.

4. LinkyTime edits the meeting and saves the changes.

   Use case ends.

Extensions

• 2a. The meeting list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. LinkyTime shows an error message stating that the given index is invalid.

    Use case resumes at step 2.

• 3b. No arguments were given.

  • 3b1. LinkyTime shows an error message stating that at least one field must be edited.

    Use case resumes at step 2.

• 3c. The user does not follow the format of the command.

  • 3c1. LinkyTime shows an error message stating the correct format of the command.

    Use case resumes at step 2.

• 3d. The edited meeting is a duplicate of an existing meeting in the meeting list.

  • 3d1. LinkyTime shows an error message stating that this meeting already exists.

    Use case resumes at step 2.

UC-006: Delete a meeting

MSS

1. User requests to list meetings.
2. LinkyTime shows a list of meetings.
3. User requests to delete a specific meeting in the meeting list based on the index from the meeting list displayed in step 2.

4. LinkyTime deletes the meeting and saves the changes.

   Use case ends.

Extensions

• 2a. The meeting list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. LinkyTime shows an error message stating that the given index is invalid.

    Use case resumes at step 2.

UC-007: Find meetings

MSS

1. User searches for a meeting by a search term.

2. LinkyTime shows a list of meetings whose name, tags, or module contains the search term.

   Use case ends.

Extensions

• 2a. There are no meetings matching the search term.

  • 2a1. An empty meeting list is displayed.

    Use case ends.

UC-008: Add a module

MSS

1. User requests to add a new module to the module list.

2. LinkyTime adds a new module with given parameters in the module list.

   Use case ends.

Extensions

• 1a. The user does not include the required parameters with the command.

  • 1a1. LinkyTime shows an error message stating which parameters are required.

    Use case ends.

• 1b. The user does not follow the format of the command.

  • 1b1. LinkyTime shows an error message stating the correct format of the command.

    Use case ends.

• 1c. The new module is a duplicate of an existing module in the module list.

  • 1c1. LinkyTime shows an error message stating that this module already exists.

    Use case ends.

UC-009: Edit a module

MSS

1. User requests to edit a specific module based on the index from the module list displayed.

2. LinkyTime edits the module and all associated meetings and saves the changes.

   Use case ends.

Extensions

• 1a. The module list is empty.

  Use case ends.

• 1b. The given index is invalid.

  • 1b1. LinkyTime shows an error message stating that the given index is invalid.

    Use case resumes at step 1.

• 1c. No arguments were given.

  • 1c1. LinkyTime shows an error message stating that at least one field must be edited.

    Use case resumes at step 1.

• 1d. The user does not follow the format of the command.

  • 1d1. LinkyTime shows an error message stating the correct format of the command.

    Use case resumes at step 1.

• 1c. The edited module is a duplicate of an existing module in the module list.

  • 1c1. LinkyTime shows an error message stating that this module already exists.

    Use case resumes at step 1.

UC-010: Delete a module

MSS

1. User requests to delete a specific module in the module list based on the index from the module list displayed.

2. LinkyTime deletes the module and saves the changes.

   Use case ends.

Extensions

• 1a. The module list is empty.

  Use case ends.

• 1b. The given index is invalid.

  • 1b1. LinkyTime shows an error message stating that the given index is invalid.

    Use case resumes at step 1.

• 1c. The module has associated meetings in the meeting list.

  • 1c1. LinkyTime shows an error message stating that the module cannot be deleted due to associated meetings.

    Use case resumes at step 1.

UC-011: Delete a module and its associated meetings

MSS

1. User requests to force delete a specific module and its associated meetings based on the index from the module list displayed.

2. LinkyTime deletes the module and its associated meetings and saves the changes.

   Use case ends.

Extensions

• 1a. The module list is empty.

  Use case ends.

• 1b. The given index is invalid.

  • 1b1. LinkyTime shows an error message stating that the given index is invalid.

    Use case resumes at step 1.

UC-012: Clear all data

MSS

1. User chooses to clear all data in LinkyTime.

2. LinkyTime deletes all meetings and modules and saves the changes.

   Use case ends.

Extensions

• 2a. The meeting and module lists are empty.

  Use case ends.

UC-013: Access help

MSS

1. User requests to see the list of commands available.

2. LinkyTime opens a dialog box with a link to the User Guide.

   Use case ends.

---

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 meetings without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. A user should be familiar with the basic commands within half an hour of usage.
5. Should be portable to allow transferring of data between different computers.
6. Should not require an installer.
7. Should not depend on external/remote servers.
8. Should not depend on a Database Management System (DBMS).

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X.
• Meeting: An online class containing the details such as the meeting link, name, date, and other fields.
• Module: A self-contained structured unit of study in a specific subject. Also known as course, class.
• NUS: The National University of Singapore.
• Command: A keyword that defines an action for the program to perform when entered into the command box.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch
   1. Download the jar file and copy into an empty folder.
   2. Double-click the jar file.
      Expected: Shows the GUI with a set of sample meetings and modules. The window size may not be optimum.
2. Saving window preferences
   1. Resize the window to an optimum size. Move the window to a different location. Close the window.
   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Meeting

Adding Meetings

1. Adding a meeting
   1. Prerequisites:
      1. There is no other meetings with the exact same fields.
      2. There is one module in the module list.
   2. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz
      Expected: Meeting is added.
2. Duplicate meeting
   1. Prerequisites:
      1. The test case command was just entered.
   2. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
3. Incorrect name
   1. Test case: add n/Lectur$ u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
4. Incorrect URL
   1. Test case: add n/Lecture u/zoom d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
5. Incorrect date
   1. Test case: add n/Lecture u/https://www.zoom.com d/40-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
6. Incorrect time
   1. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 2500 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
7. Incorrect duration
   1. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/25 m/1 r/Y t/recorded t/lecturequiz.
8. Incorrect module index
   1. Prerequisites:
      1. There is only 1 module in the module list.
   2. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/10 r/Y t/recorded t/lecturequiz.
9. Incorrect recurrence
   1. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/A t/recorded t/lecturequiz.
10. Incorrect tag
11. Test case: add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/!ecturequiz.
    For each of the incorrect commands, there will be an error message included on how to rectify the issue.

Editing Meetings

1. Editing a meeting in the meeting list
   1. Prerequisites:
      1. There is at least one meeting in the meeting list.

   2. Test case: edit 1 n/Lecture
      Expected: The meeting at the first index is edited.
2. Duplicate meeting

   1. For each field of the meeting, you may refer to Adding Meetings as they are exactly the same.
   2. Prerequisites:
      1. There is a meeting in the meeting list at index 4 which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
      2. There is a meeting in the meeting list at index 1 which was added using the command add n/Tutorial u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
   3. Test case: edit 1 n/Lecture
      Expected: There will be an error message included on how to rectify the issue.

Deleting Meetings

1. Deleting the first meeting in the currently shown meeting list.
   1. Prerequisites:
      1. There is at least one meeting in the meeting list currently shown.
   2. Test case: delete 1
      Expected: The first meeting in the currently shown meeting list is deleted.
2. Deleting with an non-integer index.
   1. Test case: delete abc
      Expected: Invalid command format error message shown. No meetings deleted.
3. Deleting without an index.
   1. Test case: delete
      Expected: Invalid command format error message shown. No meetings deleted.
4. Deleting with an out-of-bounds index.
   1. Prerequisites:
      1. There is at least one meeting in the meeting list currently shown.
   2. Test case: delete [index], where [index] is an integer greater than the number of meetings in the currently shown list.
      Expected: Invalid index error message shown. No meetings deleted.
5. Deleting with a negative index.
   1. Prerequisites:
      1. There is at least one meeting in the meeting list currently shown.
   2. Test case: delete [index], where [index] is a negative integer.
      Expected: Invalid command format error message shown. No meetings deleted.

List upcoming meetings

1. Listing all upcoming meetings with multiple meetings in the meeting list.
   1. Prerequisites:
      1. There are multiple meetings in the meeting list which was added using AddMeetingCommand.
   2. Test case: list
      Expected: Only meetings that are ongoing or upcoming will be shown.
2. Listing all upcoming meetings with no meetings in the meeting list.
   1. Prerequisites:
      1. There are no meetings in the meeting list.
   2. Test case: list
      Expected: No meetings will be shown.
3. Adding a ongoing or upcoming meeting after listing all upcoming meetings.
   1. Prerequisites:
      1. List all upcoming meetings using the list command.
      2. Prerequisites of Adding Meetings.
   2. Test case: Add a meeting that is ongoing or upcoming.
      Expected: A new meeting should be displayed.
4. Adding a completed meeting after listing all upcoming meetings.
   1. Prerequisites:
      1. List all upcoming meetings using the list command.
      2. Prerequisites of Adding Meetings.
   2. Test case: Add a meeting that is completed.
      Expected: No new meeting should be displayed.
5. Editing the date of an upcoming meeting, updating it to a completed meeting.
   1. Prerequisites:
      1. List all upcoming meetings using the list command.
      2. Prerequisites of Editing Meetings.
   2. Test case: Edit an existing upcoming meeting, updating its date to make it a completed meeting.
      Expected: There should be one less meeting in the meeting list shown.

List archived meetings

1. Listing all archived meetings with multiple meetings in the meeting list.
   1. Prerequisites:
      1. There are multiple meetings in the meeting list which was added using AddMeetingCommand.
   2. Test case: archive
      Expected: Only meetings that are completed will be shown.
2. Listing all archived meetings with no meetings in the meeting list.
   1. Prerequisites:
      1. There are no meetings in the meeting list.
   2. Test case: archive
      Expected: No meetings will be shown.
3. Adding a completed meeting after listing all archived meetings.
   1. Prerequisites:
      1. List all archived meetings using the archive command.
      2. Prerequisites of Adding Meetings.
   2. Test case: Add a meeting that is completed.
      Expected: A new meeting should be displayed.
4. Adding a ongoing or upcoming meeting after listing all archived meetings.
   1. Prerequisites:
      1. List all archived meetings using the archive command.
      2. Prerequisites of Adding Meetings.
   2. Test case: Add a meeting that is ongoing or upcoming.
      Expected: No new meeting should be displayed.
5. Editing the date of a completed meeting, updating it to an upcoming meeting.
   1. Prerequisites:
      1. List all archived meetings using the archive command.
      2. Prerequisites of Editing Meetings.
   2. Test case: Edit an existing archived meeting, updating its date to make it an upcoming meeting.
      Expected: There should be one less meeting in the meeting list shown.

Finding Meetings

1. Finding a meeting in the meeting list by singular name.
   1. Prerequisites:
      1. There is a module in the module list at index 1 named CS2101.
      2. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
      3. There is a meeting in the meeting list which was added using the command add n/Tutorial u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/tutorialquiz

      4. There are no other meetings in the meeting list.
   2. Test case: find Lecture
      Expected: The first meeting above will be displayed. Test case: find Tutorial
      Expected: The second meeting above will be displayed.
2. Finding a meeting in the meeting list by singular tag.
   1. Prerequisites:
      1. There is a module in the module list at index 1 named CS2101.
      2. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
      3. There is a meeting in the meeting list which was added using the command add n/Tutorial u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/tutorialquiz

      4. There are no other meetings in the meeting list.
   2. Test case: find tutorialquiz
      Expected: The second meeting above will be displayed. Test case: find lecturequiz
      Expected: The first meeting above will be displayed. Test case: find recorded
      Expected: Both meetings above will be displayed.
3. Finding a meeting in the meeting list by singular module.
   1. Prerequisites:
      1. There is a module in the module list at index 1 named CS2101 and at index 2 named CS2103T.
      2. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
      3. There is a meeting in the meeting list which was added using the command add n/Tutorial u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/tutorialquiz

      4. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/2 r/Y t/recorded t/lecturequiz.
      5. There are no other meetings in the meeting list.
   2. Test case: find CS2101
      Expected: The first and second meetings above will be displayed. Test case: find CS2103 (Partial match)
      Expected: The third meeting above will be displayed.
4. Finding a meeting in the meeting list by a combination of names, modules and tags.
   1. Prerequisites:
      1. There is a module in the module list at index 1 named CS2101 and at index 2 named CS2103T.
      2. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
      3. There is a meeting in the meeting list which was added using the command add n/Tutorial u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/tutorialquiz

      4. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/2 r/Y t/recorded t/lecturequiz.
      5. There are no other meetings in the meeting list.
   2. Test case: find lecturequiz CS2103T
      Expected: The third meeting above will be displayed. Test case: find recorded CS2101 Lecture
      Expected: The first meeting above will be displayed.
5. Finding a meeting in an empty meeting list.
   1. Prerequisites: There are no meetings in the meeting list.
   2. Test case: find this
      Expected: No meetings shown.
6. Finding a meeting with keywords that do not fit any meetings.
   1. Prerequisites:
      1. There is a module in the module list at index 1 named CS2101.
      2. There is a meeting in the meeting list which was added using the command add n/Lecture u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/lecturequiz.
      3. There is a meeting in the meeting list which was added using the command add n/Tutorial u/https://www.zoom.com d/25-03-2022 1400 dur/1.5 m/1 r/Y t/recorded t/tutorialquiz

      4. There are no other meetings in the meeting list.
   2. Test case: find this that those
      Expected: No meeting will be displayed.
7. Finding a meeting without keywords.
   1. Test case: find
      Expected: Invalid command format error message shown. Displayed meeting list unchanged.

Opening Meetings

1. Opening the first meeting in the currently shown meeting list.
   1. Prerequisites:
      1. There is at least one meeting in the meeting list currently shown. The testing device is compatible with java.awt.Desktop and has desktop capabilities.
   2. Test case: open 1
      Expected: The URL of the first meeting in the currently shown meeting list is opened in the device default browser.
2. Opening with an non-integer index.
   1. Test case: open abc
      Expected: Invalid command format error message shown. No meetings opened.
3. Opening without an index.
   1. Test case: open
      Expected: Invalid command format error message shown. No meetings opened.
4. Opening with an out-of-bounds index.
   1. Prerequisites:
      1. There is at least one meeting in the meeting list currently shown.
   2. Test case: open [index], where [index] is an integer greater than the number of meetings in the currently shown list.
      Expected: Invalid index error message shown. No meetings opened.
5. Opening with a negative index.
   1. Prerequisites:
      1. There is at least one meeting in the meeting list currently shown.
   2. Test case: open [index], where [index] is a negative integer.
      Expected: Invalid command format error message shown. No meetings opened.

Meetings sorted chronologically

1. Adding a meeting while the meeting list is shown.
   1. Prerequisites:
      1. List all upcoming/archived meetings with the list or archive command.
      2. Prerequisites of Adding Meetings.
   2. Test case: Add a meeting that is displayable by the current meeting list. e.g. If the meeting list is showing upcoming meetings, then add an upcoming meeting and vice versa.
      Expected: A new meeting is added and all meetings are still displayed in chronological order.
2. Editing a meeting while the meeting list is shown.
   1. Prerequisites:
      1. List all upcoming/archived meetings with the list or archive command.
      2. Prerequisites of Editing Meetings.
   2. Test case: Edit the date of a meeting such that it is still displayable by the current meeting list. e.g. If the meeting list is showing upcoming meetings, then the edited meeting should still be an upcoming meeting and vice versa.
      Expected: The meetings in the meeting list are still displayed in chronological order.

Module

Adding Modules

1. Creating a new module in the module list.
   1. Prerequisites:
      1. There is no other module with the exact same name.
   2. Test case: madd n/CS2103T
      Expected: Module is added.
2. Adding a duplicate module.
   1. Prerequisites:
      1. A module with the name CS2103T exists in the module list.
   2. Test case: madd n/CS2103T
      Expected: Duplicate module error message shown. No new modules created.
3. Adding a module with an invalid name.
   1. Test case: madd n/C$2!03&
      Expected: Invalid name error message shown. No new modules created.

Editing Modules

1. Editing an existing module in the module list.
   1. Prerequisites:
      1. There is at least one module displayed and no existing module named CS2103T.
   2. Test case: medit 1 n/CS2103T
      Expected: Module at the first index is edited.
2. Editing an existing module to have the same name as another module.
   1. Prerequisites:
      1. There is a module at the second index with the name CS2103T.
   2. Test case: medit 1 n/CS2103T
      Expected: Duplicate module error message shown. No modules edited.
3. Editing an existing module to have an invalid name.
   1. Prerequisites:
      1. There is at least one module displayed.
   2. Test case: medit 1 n/C$2!03&
      Expected: Invalid name error message shown. No modules edited.
4. Editing a module with a non-integer index.
   1. Prerequisites:
      1. There is at least one module displayed.
   2. Test case: medit abc n/C$2!03&
      Expected: Invalid command format error message shown. No modules edited.
5. Editing a module with an out-of-bounds index.
   1. Prerequisites:
      1. There is at least one module displayed.
   2. Test case: medit 0 n/C$2!03&
      Expected: Invalid index error message shown. No modules edited.

Deleting Modules

1. Deleting a module in the module list.
   1. Prerequisites:
      1. There is at least one module displayed and the module has no associated meetings.
   2. Test case: mdelete 1
      Expected: Module at the first index is deleted.
2. Deleting a module with a non-integer index.
   1. Prerequisites:
      1. There is at least one module displayed.
   2. Test case: mdelete abc
      Expected: Invalid command format error message shown. No modules deleted.
3. Deleting a module with an out-of-bounds index.
   1. Prerequisites:
      1. There is at least one module displayed.
   2. Test case: mdelete 0
      Expected: Invalid index error message shown. No modules deleted.
4. Deleting a module without specifying an index.
   1. Prerequisites:
      1. There is at least one module displayed.
   2. Test case: mdelete
      Expected: Invalid command format error message shown. No modules deleted.

Modules sorted alphabetically

1. Adding a module.
   1. Prerequisites:
      1. There is one existing module in the list via the test case Adding Modules.
   2. Test case: madd n/ACC1701X
      Expected: A new module is added and the module list is sorted in alphabetical order, i.e. ACC1701X is at index 1, CS2103T is at index 2.
2. Editing a module.
   1. Prerequisites:
      1. There are two existing modules in the list via the test case Modules sorted alphabetically - Adding a module.
   2. Test case: medit 1 n/GEQ1000
      Expected: The module at index 1 (ACC1701X) is edited and the module list is sorted in alphabetical order, i.e. CS2103T is at index 1, GEQ1000 is at index 2.

Appendix: Effort

If the effort required to create AB3 is 100, we would place the effort that our group put into LinkyTime at 150.

Our group has put in a significant amount effort to morph the model of AB3 to fit that of LinkyTime. On top of that, we also implemented several new features that complements our product well. As testament to our effort, we have over 10000 lines of code and over 300 automated test cases which covers over 73% of our code.

Notable Changes

• Updated GUI
  • With respect to the GUI components provided by AB3, LinkyTime has more GUI components in order to support its additional features. Each of the GUI components added were properly thought out to be intuitive and provide good UX.
  • We altered the base UI of AB3 that was working with person to work with meeting and its data instead. On top of that we added another GUI segment for module. Finally, we had to address the issues that was present in the base version of AB3 such as the overflowing of characters.
  • To ensure that our GUI is intuitive and user-friendly, we had to trial and error for a proper default and minimum window size.
• Unit Testing
  • With respect to unit tests that were present in AB3, due to the changes in the model, many of the existing test cases did not work for LinkyTime.
  • Due to the introduction of module and the unique requirement that meetings can’t exist without a module many of the initial test cases for the different commands had to be tested much more in depth in order to ensure that it worked.
  • On top of that because almost all the fields of Meeting is different from Person, there was a need to recreate test cases for each of the fields in Meeting.
  • The most notable of all the test cases were the ones that involved meeting recurrence. Due to the concept of ongoing/completed meetings, we needed to create test cases that worked relative to our current date and time.
• Auto-sort meeting chronologically
  • Rather than implementing a sort command for users to sort according to a sort function, we decided it would be much more intuitive for the user to have access to a constantly sorted list.
  • As such we implemented it such that the meeting list would be displayed chronologically regardless of what filter it current has. This was relatively hard to implement due to the limitations of JavaFX and how AB3 worked with JavaFX.
• Opening of Meeting Links
  • Accessing meeting links is a central use case of LinkyTime, and most conventional applications would achieve that by allowing their users to click on the links presented in the GUI.
  • However, since LinkyTime is a CLI application, we wanted to stay faithful to this mode of user interaction while enabling our users to swiftly and ergonomically open their meeting links.
  • As such, we implemented an open command to do just that, and fire up our user’s meeting links in their default web browsers.
  • In addition, this feature does not leverage on any existing AB3 implementation.
  • Hence, we had to design our own URL opening abstraction from scratch with the aid of the Java AWT library.
• List and Archive
  • To ensure that our users are able to access meeting information that is relevant at the instance they’re using LinkyTime, our application defaults to showing meetings that are either ongoing or coming up.
  • This would mean that non-recurring meetings that have elapsed would be hidden, and possibly be inaccessible.
  • To balance the need to show our users the most up-to-date information while not restricting any valid use they might have with the outdated ones, our Model enforces one of two invariants on our filteredMeetingList.
  • This means that at any one time, our filteredMeetingList either contains meetings that have elapsed, or meetings that are ongoing or coming up.
  • The toggling of this invariant is also exposed through our Model interface, which our list command leverages on to show all ongoing and upcoming meetings.
  • Likewise, our archive command leverages on that as well to show all elapsed non-recurring meetings.
  • In turn, this allows us to indicate to our users if they’re looking at elapsed or ongoing/upcoming meetings for a better user experience.
• Adding Meeting and Module Models
  • To start off our refactoring from AB3’s address book to LinkyTime’s meeting management, we first had to create the models for Meeting and Module.
  • We had to implement models for MeetingUrl, MeetingDateTime, MeetingDuration, etc., in the same package as Meeting.
  • The only reused model was Tag and we also adapted MeetingName from AB3’s Name.
  • For Module, we only had to implement one model. However, we decided to implement it in a separate package to follow OOP design principles.
  • We also had to create unique lists to ensure that there are no duplicates for both Meeting and Module.
  • Finally, due to using Meeting and Module, we had to refactor the majority of the codebase in order to accommodate these changes.
